Pelsue® Thermoplastic Axial Blower with Canister

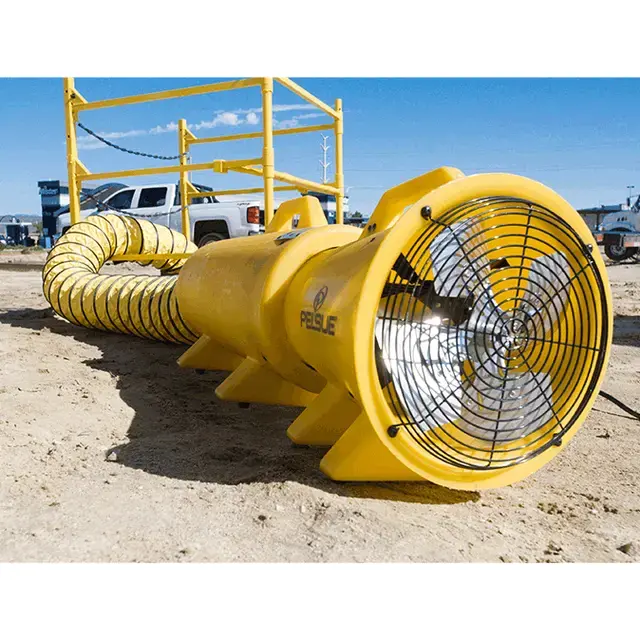

Featuring robust airflow and a lightweight thermoplastic design, the Pelsue® Thermoplastic Axial Blower with Canister ensures efficient ventilation and easy portability in challenging environments.
PRODUCT DESCRIPTION
Axial Blowers are a useful tool to ventilate confined spaces. Pelsue® all-in-one axial blowers are light, portable, & powerful. The 1375P–1485P series adds an integrated canister and pre-attached duct hose to the thermoplastic blower platform — the same non-conductive, chemical-resistant housing as the 1325P/1400P, now with everything bundled for faster site deployment.
At 36 lbs., these are 4 lbs. lighter than the steel canister equivalents, making them the right choice for crews working near electrical infrastructure or in corrosive environments who also want the convenience of an included duct.
Disclaimer: Pelsue® disclaims liability for any personal injury, property, or other damages of any nature whatsoever whether special, indirect, consequential or compensatory, directly or indirectly resulting from the publication, use of, or reliance on the Pelsue® Confined Space Buyer’s Guide. Pelsue® makes no guaranty or warranty as to the accuracy or completeness of any information published herein.
Pelsue® is not undertaking or rendering professional or other services for or on behalf of any person or entity. Pelsue® is not undertaking or performing any duty owed by any person or entity to someone else. Anyone using the Pelsue® Confined Space Buyer’s Guide should rely on his or her own independent judgement or, as appropriate, seek the advice of a competent professional in determining the exercise of reasonable care in any given circumstances.
FEATURES
- Non-conductive thermoplastic housing — preferred near electrical hazards
- Chemical-resistant — handles corrosive and humid confined space environments
- Integrated canister + duct hose included (15′ or 25′) — deploy faster
- CEESI-certified airflow — verified performance for OSHA compliance
TECHNICAL SPECIFICATIONS
| Model | 1375P | 1385P | 1475D | 1485D |
|---|---|---|---|---|
| Power | Electric – 1/3 HP, 120 VAC, 3 amps | Electric – 1/3 HP, 120 VAC, 3 amps | Electric – 1/4 HP, 12 VAC, 15 amps | Electric – 1/4 HP, 12 VAC, 15 amps |
| Material | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic |
| Dimensions (L x W x H) | 37 x 13 x 14.5 in. (93.98 x 33.02 x 36.83 cm) |
37 x 13 x 14.5 in. (93.98 x 33.02 x 36.83 cm) |
37 x 13 x 14.5 in. (93.98 x 33.02 x 36.83 cm) |
37 x 13 x 14.5 in. (93.98 x 33.02 x 36.83 cm) |
| Weight | 36 lbs. (16.33 kg) |
36 lbs. (16.33 kg) |
36 lbs. (16.33 kg) |
36 lbs. (16.33 kg) |
| Static Pressure | 1.87 in. W.C. (466 Pa) |
1.87 in. W.C. (466 Pa) |
1.20 in. W.C. (299 Pa) |
1.20 in. W.C. (299 Pa) |
| Included Duct Hose | 15 ft (4.57 m) |
25 ft (7.62 m) |
15 ft (4.57 m) |
25 ft (7.62 m) |
| Certified Air Flow with One 90° Bend | 575 CFM (16.28 m³/min) |
541 CFM (15.32 m³/min) |
478 CFM (13.54 m³/min) |
439 CFM (12.43 m³/min) |
| Certified Air Flow with Two 90° Bends | 546 CFM (15.46 m³/min) |
544 CFM (15.40 m³/min) |
479 CFM (13.56 m³/min) |
432 CFM (12.23 m³/min) |
| Certifications | CSA, CEESI | CSA, CEESI | CEESI | CEESI |
