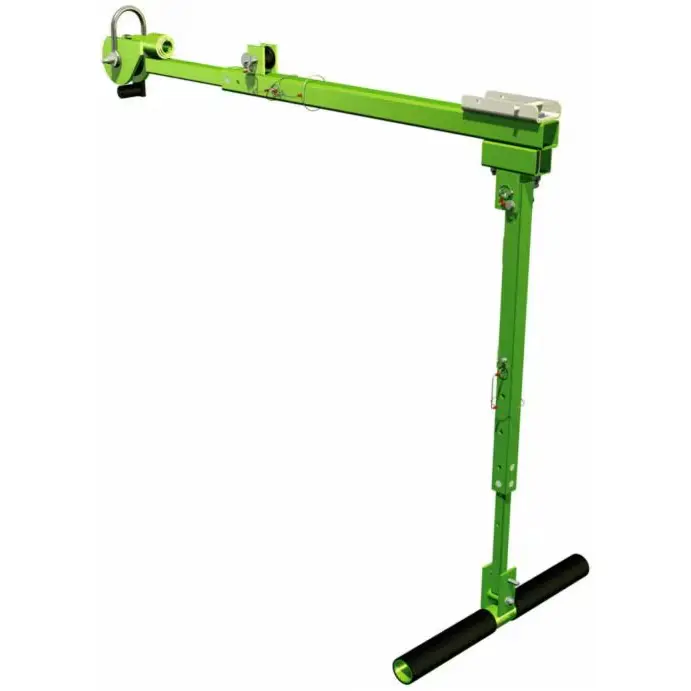

3M™ DBI-SALA® Confined Space Pole Hoist System – 6 ft to 10 ft
The 3M™ DBI-SALA® Confined Space Pole Hoist System is a versatile and adjustable fall protection solution, extending from 6 ft to 10 ft for safe and efficient entry and retrieval in confined spaces.
PRODUCT DESCRIPTION

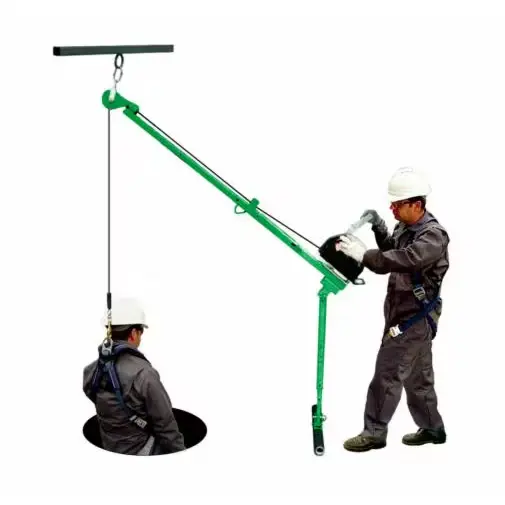

The 3M™ DBI-SALA® Confined Space Pole Hoist System easily attaches with a carabiner to a secure anchor point, allowing workers in the field or on the roadway to work many directions from many angles. The unique swivel head allows for 360-degree rotation, allowing for easy entry into tight spaces. A quick-mount bracket allows for easy addition of a winch, and the built-in pulley is ready to work in any conditions. The hoist system is available in two lengths to accommodate different job demands.
Durable design: Strenuous labor requires fall protection equipment and safety gear workers can trust. Designed with durable materials, the pole hoist system is designed to stand up to the detrimental effects of harsh weather and repeated use. A built-in pulley system works with a lifeline (sold separately) to position workers and materials for smooth entry and exit from confined spaces. Versatile and stable: The pole hoist system features a unique swivel head allowing for 360-degree rotation, providing ease of entry into both vertical and horizontal confined spaces. A stabilizer T-bar helps to reduces mobility and increases stability to the pole hoist system for optimal performance. Extendable and lightweight, workers who want a versatile and reliable confined-space system choose this pole hoist system. Easy to use: The components of the pole hoist system slide together for set up and breakdown. Stable detent-style attachment creates a collapsible hoist system for easy transport and storage. The quick-mount bracket allows users to connect a winch directly to the hoist system.
FEATURES
- Available in extensions of 4 ft.–7 ft. (1.2 m–2.1 m) or 6 ft.–10 ft. (1.8 m–3 m)
- Built in pulley for 3-way SRL with emergency retrieval or winch
- Swivel head rotates 360 degrees
- The 3-way SRL with emergency retrieval or winch attach easily to mounting bracket
- T-bar for added stability
- Durable construction
- Set up and dismantle without tools
SPECIFICATIONS
| Brands | DBI-SALA® |
|---|---|
| Case Quantity | 1 |
| Connected Safety ID Equipped | No |
| For Entry Type | Horizontal & Vertical |
| Install Type | Portable |
| Material | Aluminum |
| Maximum Arm Length (Imperial) | 10 ft |
| Maximum Arm Length (Metric) | 3 m |
| Maximum Pole Length (Imperial) | 4.5 ft |
| Maximum Pole Length (Metric) | 1.4 m |
| Minimum Arm Length (Imperial) | 4 ft |
| Minimum Arm Length (Metric) | 1.2 m |
| Minimum Pole Length (Imperial) | 3 ft |
| Minimum Pole Length (Metric) | 0.9 m |
| Mount Type | Flange Face |
| Net Weight (Imperial) | 26.5 lbs. |
| Net Weight (Metric) | 12 kg |
| Number of Connectors | 1 |
| Product Color | Green |
| Product Type | Confined Space System |
| Recommended Industry | Construction, General Industrial, Mining, Oil & Gas, Transportation, Utilities |
| SRL Included | No |
| Specifications Met | CE EN 795:2012, OSHA 1910.140, OSHA 1926.502 |
| Overall Height (Imperial) | 47.67 in |
| Overall Height (Metric) | 121.08 cm |
| Weight Capacity (Imperial) | 450 lbs. |
| Weight Capacity (Metric) | 204 kg |
