November 27, 2025HEN® BLADE™ 45

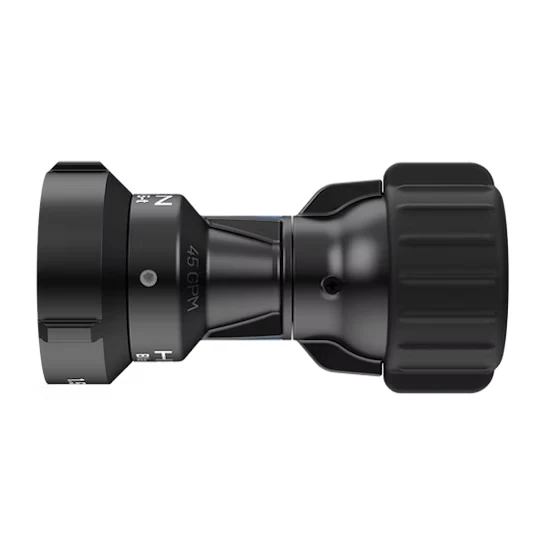

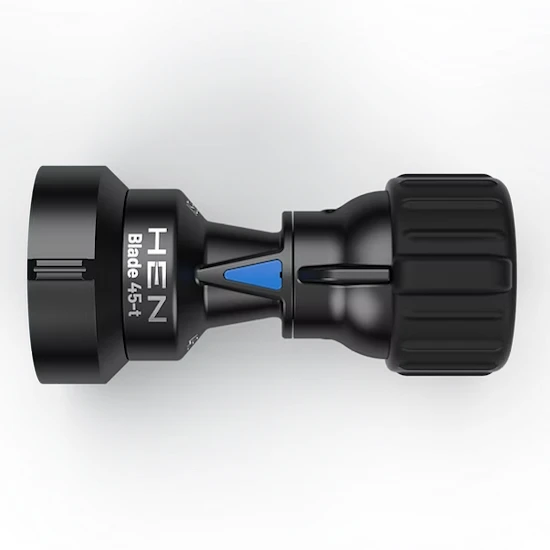

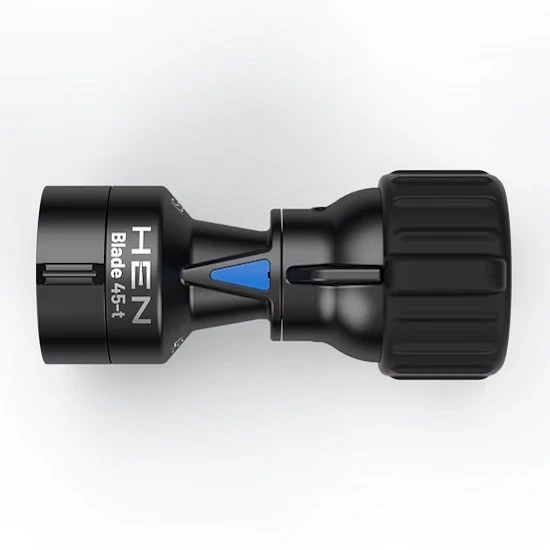

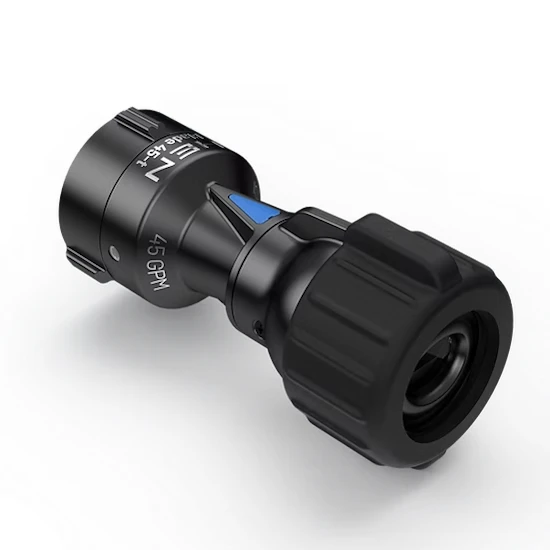

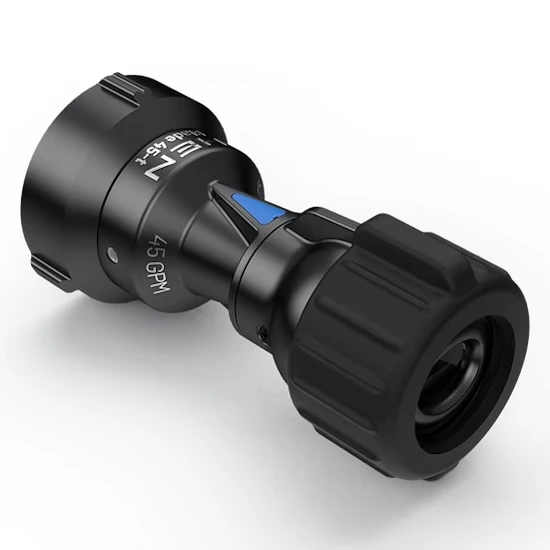

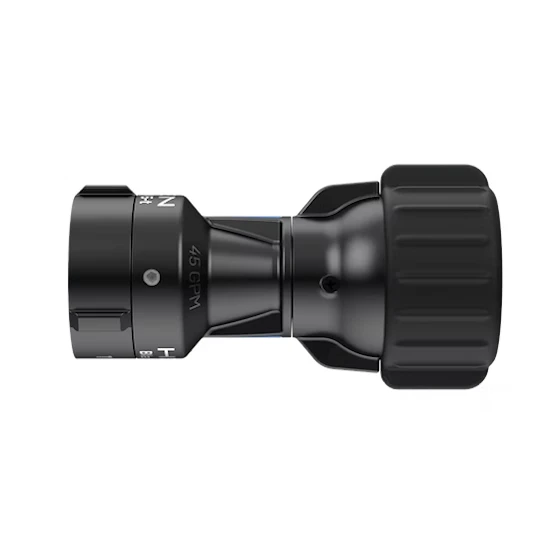

The HEN® BLADE™ 45 nozzle provides reliable, precise water flow designed to enhance firefighter control in demanding fireground conditions.
PRODUCT DESCRIPTION
45GPM @ 100PSI Nozzle
The HEN® BLADE™ combination smoothbore nozzle redefines fire attack by combining the reach and penetration of a traditional smoothbore with the versatility of an in-line BLADE™ pattern. With a simple quarter turn, firefighters can transition from a tight solid stream to a wide, high-impact BLADE™ stream, delivering large water droplets for maximum efficiency, improved cooling, and enhanced control.
The HEN® BLADE™ combination smoothbore nozzle redefines fire attack by combining the reach and penetration of a traditional smoothbore with the versatility of an in-line BLADE™ pattern. With a simple quarter turn, firefighters can transition from a tight solid stream to a wide, high-impact BLADE™ stream, delivering large water droplets for maximum efficiency, improved cooling, and enhanced control.
Compatible Shutoffs
- HYDRO® 100 1”NH / 1″NPSH / 1.5”NH / 1.5”NPSH
FEATURES
- Quarter-turn from solid linear BLADE™ pattern to solid tight pattern
- Hard-coat anodized aluminum construction
- Available with 1” NH, 1” NPSH, 1.5″ NH, & 1.5″
- NPSH threads
- Full-time swivel
- NFPA 1960/1964 compliant
- 5-Year Warranty
SPECIFICATIONS
Imperial |
Metric |
|
|---|---|---|
Target Flow |
45 gpm |
170 lpm |
Target Pressure |
100 psi |
7 bar |
BLADE™ Pattern Angle |
22° |
22° |
Weight |
1 lb |
0.45 kg |
Length |
5.5 in. |
140 mm |
Width |
2.5 in. |
64 mm |
TECHNICAL DATA
Flow Rates
Pressure PSI (bar) |
Flow Rate GPM (lpm) |
|---|---|
50 (3.4) |
32 (121) |
75 (5.2) |
39 (149) |
100 (6.9) |
45 (172) |
125 (8.6) |
51 (192) |
150 (10.3) |
56 (210) |
Coverage
Width |
Reach |
|---|---|
10′ |
25′ |
8′ |
20′ |
6′ |
15′ |
4′ |
10′ |
2′ |
5′ |
