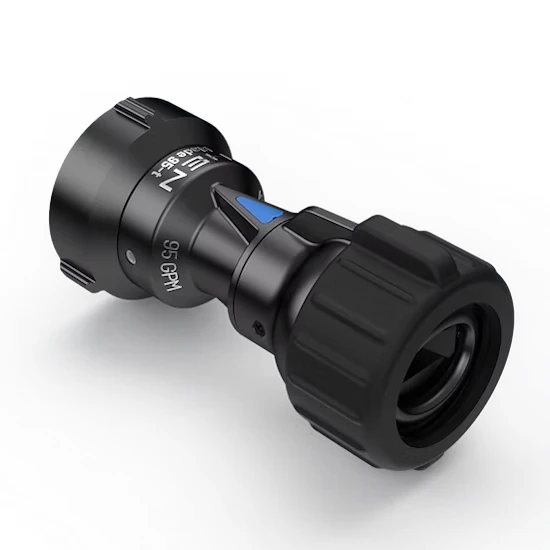

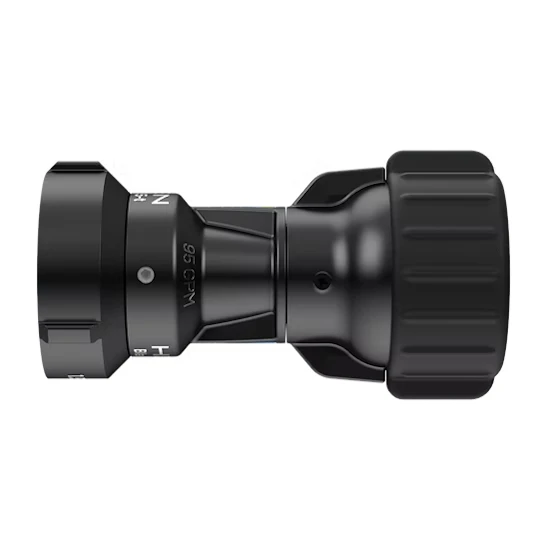

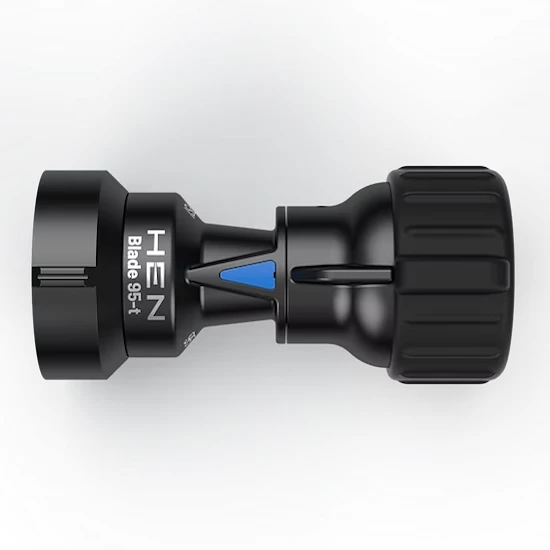

HEN® BLADE™ 95
The HEN® BLADE™ 95 nozzle provides reliable, precise water flow designed to enhance firefighter control in demanding fireground conditions.
PRODUCT DESCRIPTION
95GPM @ 100PSI Nozzle
The HEN® BLADE™ combination smoothbore nozzle redefines fire attack by combining the reach and penetration of a traditional smoothbore with the versatility of an in-line BLADE™ pattern. With a simple quarter turn, firefighters can transition from a tight solid stream to a wide, high-impact BLADE™ stream, delivering large water droplets for maximum efficiency, improved cooling, and enhanced control.
Compatible Shutoffs
- HYDRO® 100 1”NH / 1”NPSH
- HYDRO® 100 1.5”NH / 1.5”NPSH
FEATURES
- Quarter-turn from solid linear BLADE™ pattern to solid tight pattern
- Hard-coat anodized aluminum construction
- Available with 1.5” NH and 1.5” NPSH threads
- Full-time swivel
- NFPA 1960/1964 compliant
- 5-Year Warranty
SPECIFICATIONS
Imperial |
Metric |
|
|---|---|---|
Target Flow |
95 gpm |
350 lpm |
Target Pressure |
100 psi |
7 bar |
BLADE™ Pattern Angle |
22° |
22° |
Weight |
1.2 lbs |
0.54 kg |
Length |
5.7 in. |
145 mm |
Width |
2.7 in. |
69 mm |
TECHNICAL DATA
Flow Rates
Pressure PSI (bar) |
Flow Rate GPM (lpm) |
|---|---|
50 (3.4) |
67 (253) |
75 (5.2) |
82 (310) |
100 (6.9) |
95 (358) |
125 (8.6) |
106 (400) |
150 (10.3) |
116 (438) |
Coverage
Width |
Reach |
|---|---|
10′ |
25′ |
8′ |
20′ |
6′ |
15′ |
4′ |
10′ |
2′ |
5′ |
