November 27, 2025HEN® HYDRO® 138

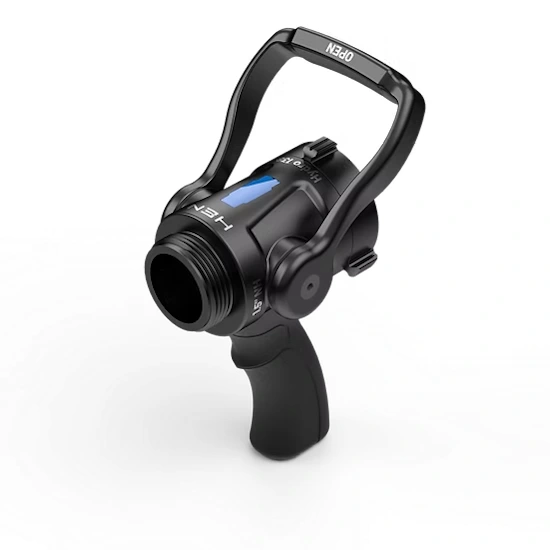

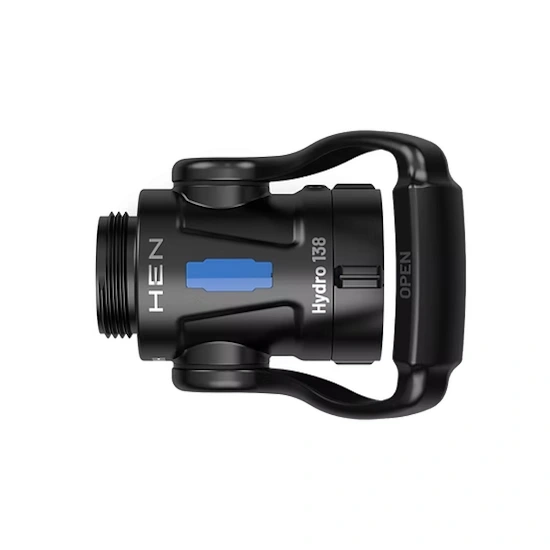

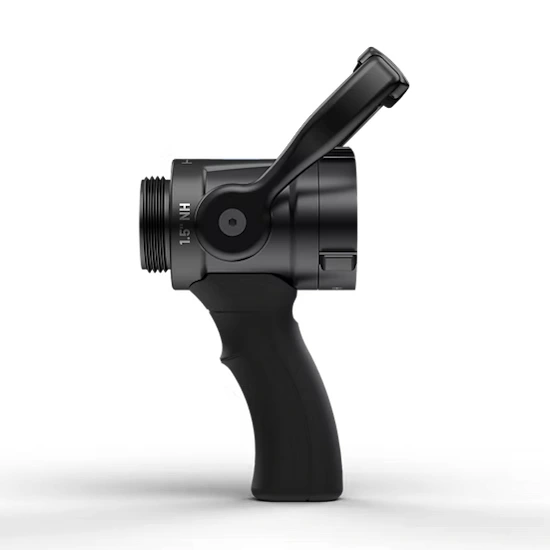

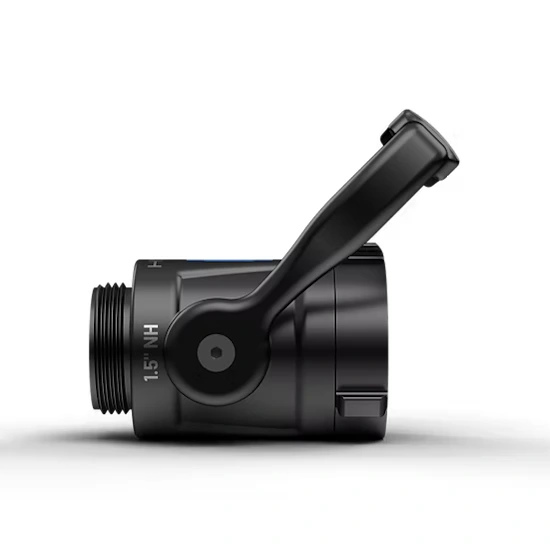

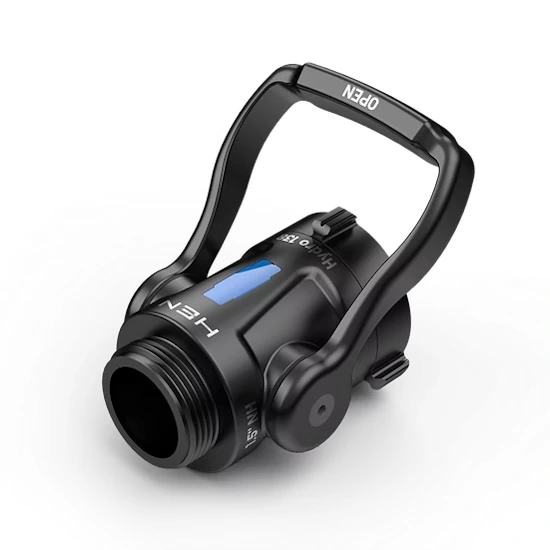

The HEN® HYDRO® 138 delivers consistent water performance with durable construction built for tough fireground use.
SKU: 138H33-00
Category: Fire
Tags: Anodized Aluminum Durable Ergonomic Design Firefighting Full-Ball Valve Full-time Swivel HYDRO Lightweight NFPA NFPA 1960 NFPA 1964 NH NPSH Shutoff
Brand: HEN
PRODUCT DESCRIPTION
The HEN® HYDRO® 138 is a high durability shutoff with a 1-inch waterway and full-ball valve, designed for superior flow performance while minimizing resistance and enhancing firefighter control. The HYDRO® shutoff provides superior flow with less waterway turbulence. Pistol grip sold separately.
Compatible Nozzles
- BLADE™ 95
- BLADE™ 160
- BLADE™ 185
- BLADE™ 265 with 1.5″NH threads
- TIP 160
FEATURES
- 1-⅜” waterway
- Superior ergonomic design
- Full-ball design maintains stream quality when baled-down
- Lightweight
- Hard-coat anodized aluminum body and all-metal ball
- Inlet Threads: 1.5” NH, 1.5” NPSH, 2.5” NH, and 2.5” NPSH
- Outlet Threads: 1.5” NH, and 1.5” NPSH
- Full-time swivel
- NFPA 1964 compliant
- 5 Year Warranty
- Pistol grip available
- See the product specification guide below for compatible nozzles
SPECIFICATIONS
Imperial |
Metric |
|
|---|---|---|
Waterway Size |
1.375 in. |
35 mm |
Rated Pressure |
200 psi |
14 bar |
Weight (1.5″ / 2.5″ thread) |
2.65 / 3 lbs. |
1.2 / 1.4 kg |
Length (1.5″ / 2.5″ thread) |
5.2 / 5.2 in. |
132 / 132 mm |
Width (1.5″ / 2.5″ thread) |
4.1 / 4.1 in. |
104 / 104 mm |
Height (1.5″ / 2.5″ thread) |
5.2 / 5.7 in. |
132 / 145mm |
