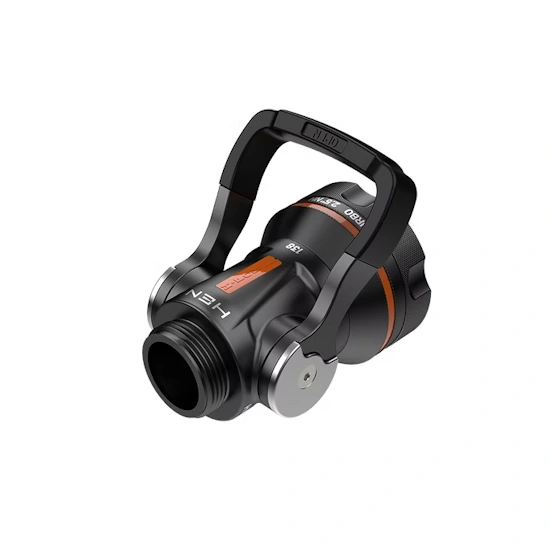

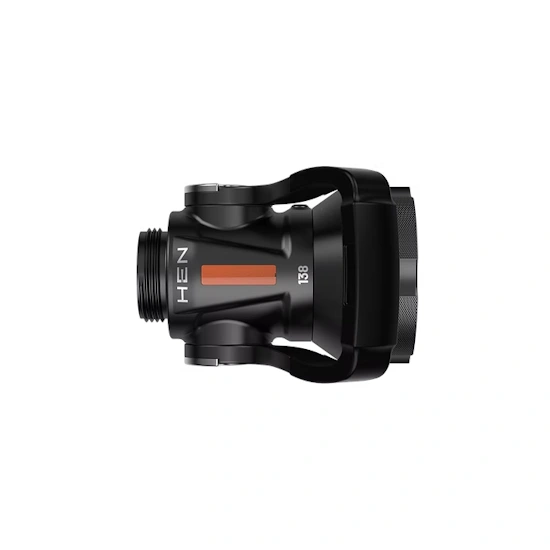

HEN® HYDRO FORCE™ 138

PRODUCT DESCRIPTION

The HEN® HYDRO FORCE™ 138 is a back-pressure device engineered for 75 PSI inlet pressure. It maximizes hose performance while maintaining nozzle pressure between 45 to 50 PSI across all 1.75-inch handline hose types. This configuration delivers a targeted flow of 175 GPM at 45 PSI nozzle pressure, resulting in a manageable 60 lbs. nozzle reaction force. Pistol grip sold separately.

FEATURES

• Full-ball design maintains stream quality when baled-down
• Lightweight
• Hard-coat anodized aluminum body and all-metal ball
• Inlet Threads: 1.5” NH, 1.5” NPSH
• Outlet Threads: 1.5” NH, and 1.5” NPSH
• Full-time swivel
• NFPA 1964 compliant
• 5 Year Warranty
• Pistol grip available

1.5″ Inlet (Blue):

• 1-⅜” waterway
• Works with ALL 1.75″ hoseline
• 175 GPM @ 45 PSI nozzle pressure
• 60 pounds of nozzle reaction
• Reduces nozzle whip & hose kinks
• 75 PSI inlet/back pressure
• Superior ergonomic design
• NFPA 1964/1960 compliant
• See the product specification guide below for compatible nozzles

2.5″ Inlet (Orange):

• 1-⅜” waterway
• Works with ALL 2″, 2.25″ and 2.5″ hoselines
• 250 GPM@ 45 PSI or 265 GPM @ 50 PSI
• 99 pounds of nozzle reaction

RESOURCES

• Product Datasheet
