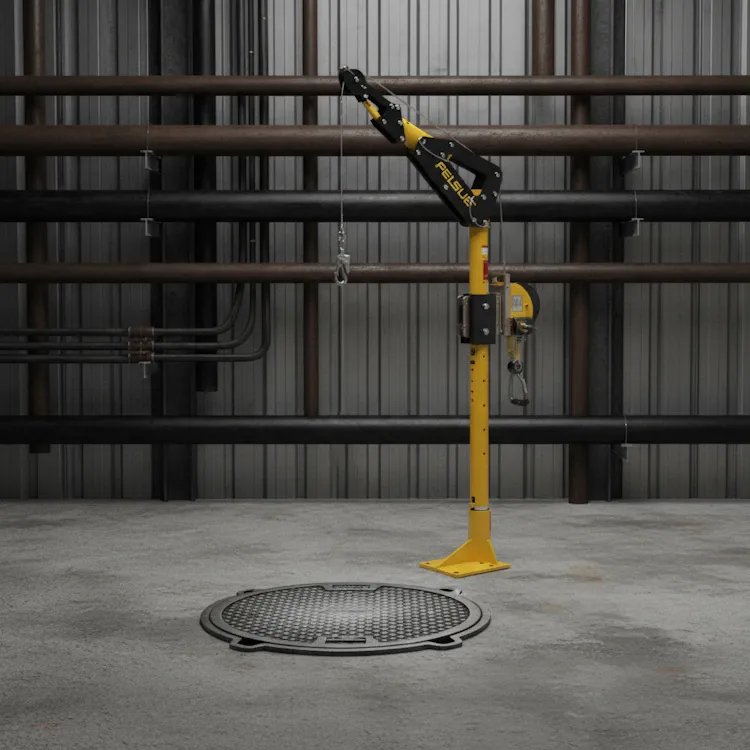

Pelsue® Permanent Base Davit Fall Protection System
The Pelsue® Permanent Base Davit Fall Protection System provides a sturdy and long-term solution for fall protection, offering safety and stability in fixed work environments.
PRODUCT DESCRIPTION
The Pelsue® Davit System is extremely versatile and can be used for both fall protection and rescue & retrieval. The system includes a universal bracket for the mounting of a hoist, standard SRL, or 3-Way SRL, and offers an additional mounting location for using two systems.
All Pelsue Davit Systems are built from structural aluminum, allowing for lightweight and portable use. They are also specially engineered to be fully set up in about 5 minutes. The Pelsue Davit System is proudly made in America with the highest quality materials to ensure the system will provide you years of service.
Every Davit system includes 1 hoist bracket & mounting plate for use with a standard retrieval hoist. No hoist included. All Pelsue Davit Systems are man rated to 310 lbs.
TECHNICAL DATA
Complete Arms |
Description |
Weight |
|---|---|---|
DK1824 |
Davit Mast, includes center post (CP60), elbow (EM01), and 18″/24″ offset arm (BA24) (Base and hoist sold separately) |
45 lbs. |
DK3036 |
Davit Mast, includes center post (CP60), elbow (EM01), and 30″/36″ offset arm (BA36) (Base and hoist sold separately) |
48 lbs. |
DK4248 |
Davit Mast, includes center post (CP60), elbow (EM01), and 42″/48″ offset arm (BA48) (Base and hoist sold separately) |
51 lbs. |
Individual Parts |
Description |
Weight |
|---|---|---|
BA24 |
Offset Arm, aluminum, with pulley & U-bracket, 18″/24″ offset reach |
7 lbs. |
BA36 |
Offset Arm, aluminum, with pulley & U-bracket, 30″/36″ offset reach |
10 lbs. |
BA48 |
Offset Arm, aluminum, with pulley & U-bracket, 42″/48″ offset reach |
12 lbs. |
EM01 |
Elbow, fabricated aluminum, reversible for different offset lengths |
13 lbs. |
CP60 |
Center post with hoist mounting bracket, aluminum, 60″ H |
26 lbs. |
CPX-15 |
Center post extension, powder coated steel, 15″ |
22 lbs. |
CPX-24 |
Center post extension, powder coated steel, 24″ |
25 lbs. |
CPX-36 |
Center post extension, powder coated steel, 36″ |
31 lbs. |
Mount Sleeves |
Description |
Weight |
|---|---|---|
DSP-F2 |
Coated steel, center floor mount – can anchor to surfaces such as floors, truck beds, catwalks, etc. |
24 lbs. |
DSS-F2 |
Stainless steel, center floor mount – can anchor to surfaces such as floors, truck beds, catwalks, etc. |
24 lbs. |
DSP-F1 |
Coated steel, floor mount – can anchor to surfaces such as floors, truck beds, catwalks, etc. |
24 lbs. |
DSS-F1 |
Stainless steel, floor mount – can anchor to surfaces such as floors, truck beds, catwalks, etc. |
24 lbs. |
DSP-W1 |
Coated steel – wall mounted. Can anchor to truck bumpers, tank walls, sides of catwalks, meter pits, clarifiers, etc. |
22 lbs. |
DSS-W1 |
Stainless steel – wall mounted. Can anchor to truck bumpers, tank walls, sides of catwalks, meter pits, clarifiers, etc. |
22 lbs. |
DSP-A1 |
Coated steel – inside 90° angle. The corner mount is anchored by bolts to reinforced truck bumpers, walls, etc. |
26 lbs. |
DSP-A2 |
Coated steel – outside 90° angle. The corner mount is anchored by bolts to reinforced truck bumpers, walls, etc. |
26 lbs. |
DSP-C2 |
Coated steel – cylinder core mount is drilled into existing concrete or poured into fresh concrete. Must be secured to the concrete with grout or epoxy compatible with plant conditions. |
9 lbs. |
DSS-C2 |
Stainless steel – cylinder core mount is drilled into existing concrete or poured into fresh concrete. Must be secured to the concrete with grout or epoxy compatible with plant conditions. |
9 lbs. |
DSP-C1 |
Coated steel – placed in fresh concrete, this sleeve mounts flush with the floor and is great for high traffic areas where trip hazards are a concern. |
21 lbs. |
DSS-C1 |
Stainless steel – placed in fresh concrete, this sleeve mounts flush with the floor and is great for high traffic areas where trip hazards are a concern. |
21 lbs. |
DSP-F3 |
Coated steel – the existing concrete flush floor mount is drilled and bolted in concrete or welded or bolted in steel. Great for high traffic areas where trip hazards are a concern. |
23 lbs. |
DSS-F3 |
Stainless steel – the existing concrete flush floor mount is drilled and bolted in concrete or welded or bolted in steel. Great for high traffic areas where trip hazards are a concern. |
23 lbs. |
DSR-S03 |
Portable Wall Mounted Base – zinc plated carbon steel. Clamping via 8 bolts, the wall mount straddles walls of tanks, caissons, shorings, etc. up to 3″ thick. |
58 lbs. |
DSR-A08 |
Clamping Portable Wall Mounted Base – yellow powder coated. For clamping onto a wall ranging from 3″ to 8″ thick walls. |
35 lbs. |
DSR-ADJ |
Adjustable Wall Mounted Base – yellow powder coated. The adjustable wall mount can clamp to any wall ranging from 1″ – 23.25″ thick. |
55 lbs. |
DSC-S2 |
Sleeve accessory – zinc plated steel sleeve cap. Used to seal sleeves when not in use. Has a rubber seal that expands into sleeve. |
1 lb. |
DSC-S1 |
Sleeve accessory – stainless steel sleeve cap. Used to seal sleeves when not in use. Has a rubber seal that expands into sleeve. |
1 lb. |
DSC-P1 |
Sleeve accessory – ABS plastic sleeve cap. Used to seal sleeves when not in use. Has a rubber seal that expands into sleeve. |
0.24 lbs. |
Permanent Mount Sleeves
Model |
Description |
|---|---|
DSP-F1 |
Floor Mounted: Coated Steel |
DSS-F1 |
Floor Mounted: Stainless Steel DSG-F1 – Floor Mounted: Galvanized Steel |
DSP-F2 |
Center Floor Mounted: Coated Steel |
DSS-F2 |
Center Floor Mounted: Stainless Steel |
DSG-F2 |
Center Floor Mounted: Galvanized Steel |
DSP-W1 |
Wall Mounted: Coated Steel |
DSS-W1 |
Wall Mounted: Stainless Steel |
DSG-W1 |
Wall Mounted: Galvanized Steel |
DSP-A1 |
Inside Corner Mounted: Coated Steel |
DSP-A2 |
Outside Corner Mounted: Coated Steel |
DSP-C2 |
Cylinder Core: Coated Steel |
DSS-C2 |
Cylinder Core: Stainless Steel |
DSP-C1 |
Flush Floor Mounted (Fresh Pour Concrete): Coated Steel |
DSS-C1 |
Flush Floor Mounted (Fresh Pour Concrete): Stainless Steel |
DSP-F3 |
Flush Floor Mounted (Existing Concrete): Coated Steel |
DSS-F3 |
Flush Floor Mounted (Existing Concrete): Stainless Steel |
Portable Wall Mounted Bases
Model |
Description |
|---|---|
DSR-S03 |
Portable Wall Mount: Zinc Plated Carbon Steel |
DSR-A08 |
Clamping Portable Wall Mount: Yellow Powder Coated |
DSR-ADJ |
Adjustable Wall Mount: Yellow Powder Coated |
Sleeve Caps
Model |
Material |
|---|---|
DSC-S2 |
Powder Coated Steel |
DSC-S1 |
Stainless Steel |
DSC-P1 |
Plastic 0 |
