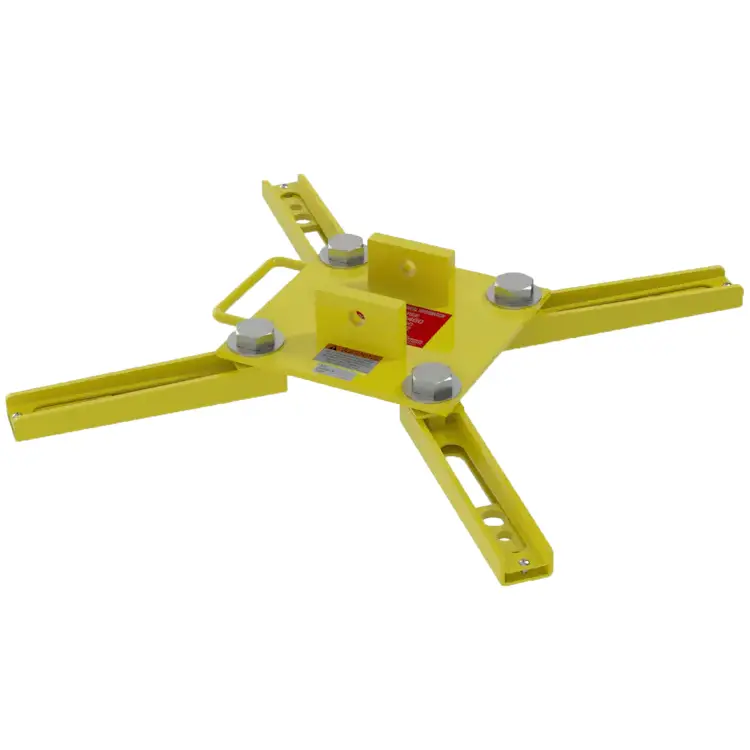

Pelsue® Spider Base – 4-Arm Manway Mount
The Pelsue® Spider Base – 4-Arm Manway Mount provides a stable and reliable solution for securely mounting equipment in various industrial applications.
PRODUCT DESCRIPTION
The Pelsue® Spider 4-Arm Manway Base is specifically designed to provide a portable mounting point for the Pelsue® Uni-Lite Fall Arrest Post. The four arms that extend from the base plate of the Spider Base, 4-Arm Manway Mount pivot independently, and are equipped with sliding bolting blocks that can be secured at any point along the leg’s length. These two features allow the base to mount over a large variety of sizes of manways. The Spider 4-Arm Manway Base is constructed of steel with a powder coated finish and is only rated for usage in conjunction with Pelsue Uni-Lite Fall Arrest Post and must be operated according to the supplied Product Manual.
FEATURES
-
Portable Fall Arrest Post Base for installation on manways
-
Independently pivoting arms and Slider Blocks allow maximum adjustment
-
Folding Arms and handle for easy transportation or stowage
-
Provides an approved mounting base for Pelsue Uni-Lite Fall Arrest Post
TECHNICAL DATA
Model |
Description |
Weight |
General Construction |
Hardware |
|---|---|---|---|---|
SB-SM1 |
Spider base, 4-arm manway mount, 19″ arms, multi-position |
42.4 lbs. (19.2 kg) |
Welded Carbon Steel, Powder coated |
Grade 8 Steel Zinc Plated Steel |
SB-SM2 |
Spider base, 4-arm manway mount, 12″ arms, multi-position |
39.8 lbs. (18.1 kg) |
Welded Carbon Steel, Powder coated |
Grade 8 Steel Zinc Plated Steel |
