Petzl® PAW Rigging Plate
Model #:G063AA00/G063AA01/G063BA00/G063BA01/G063CA00/
Designed for efficient load distribution, the Petzl® PAW Rigging Plate is a lightweight, high-strength aluminum tool for organizing multiple connections in complex rigging systems.
PRODUCT DESCRIPTION
Rigging Plate

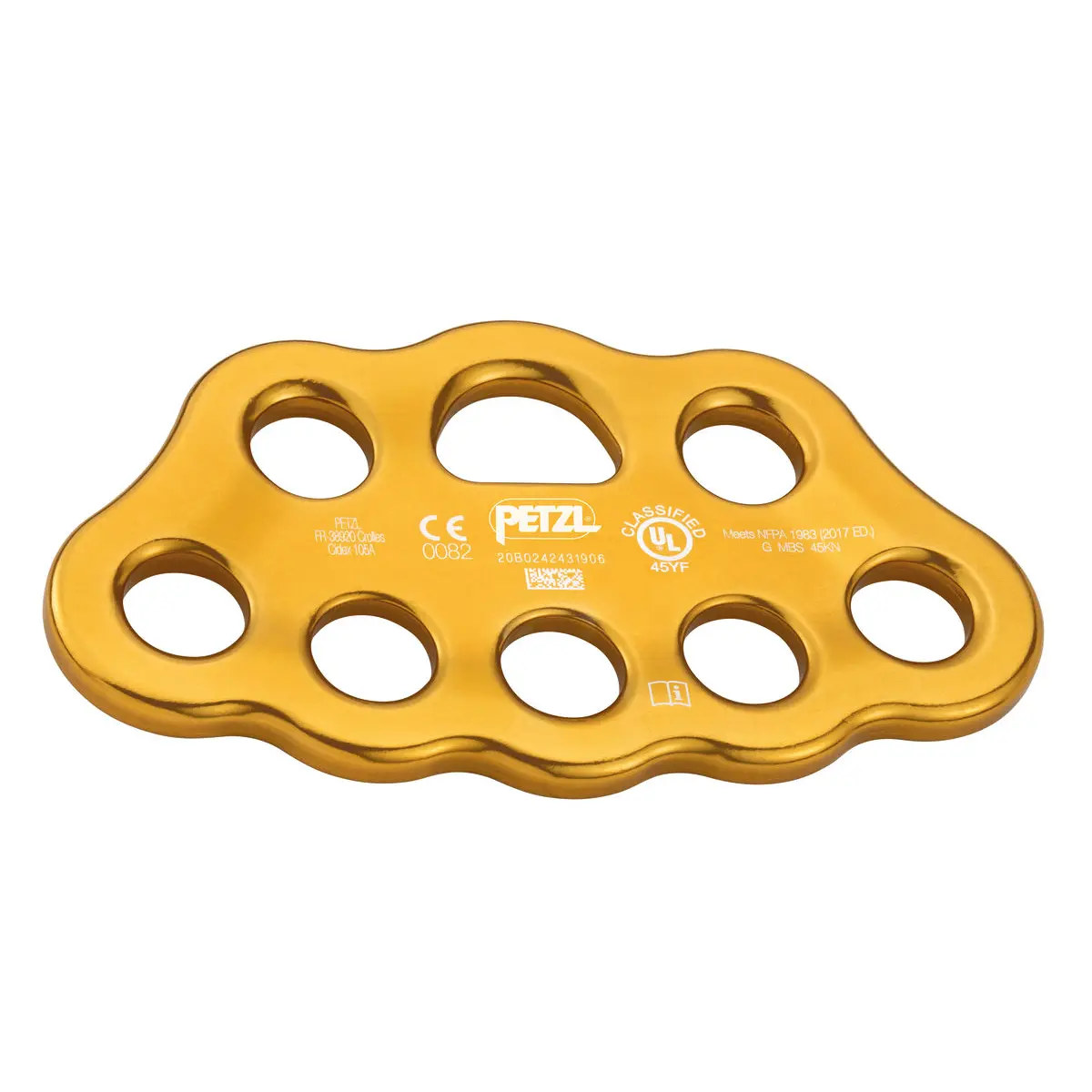

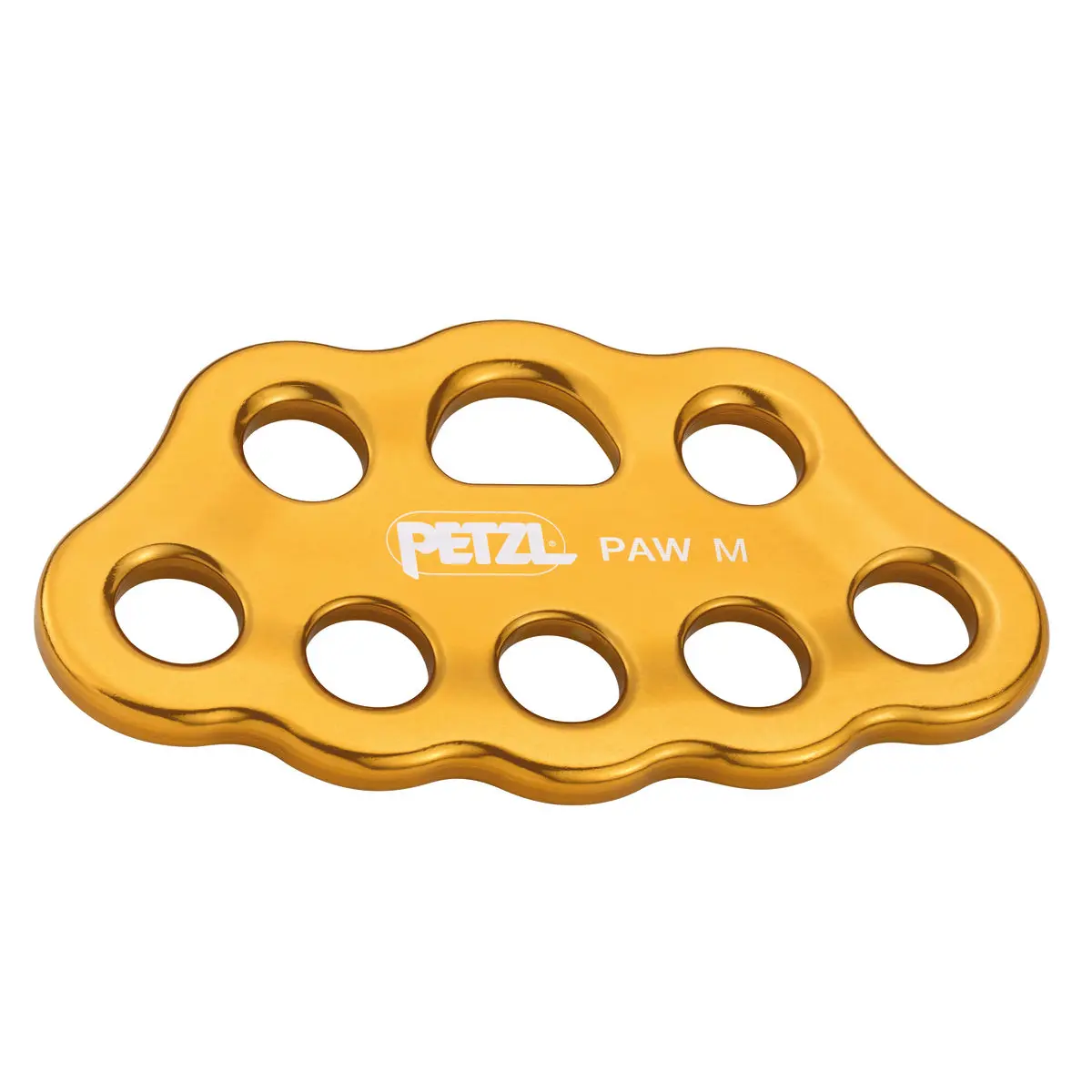

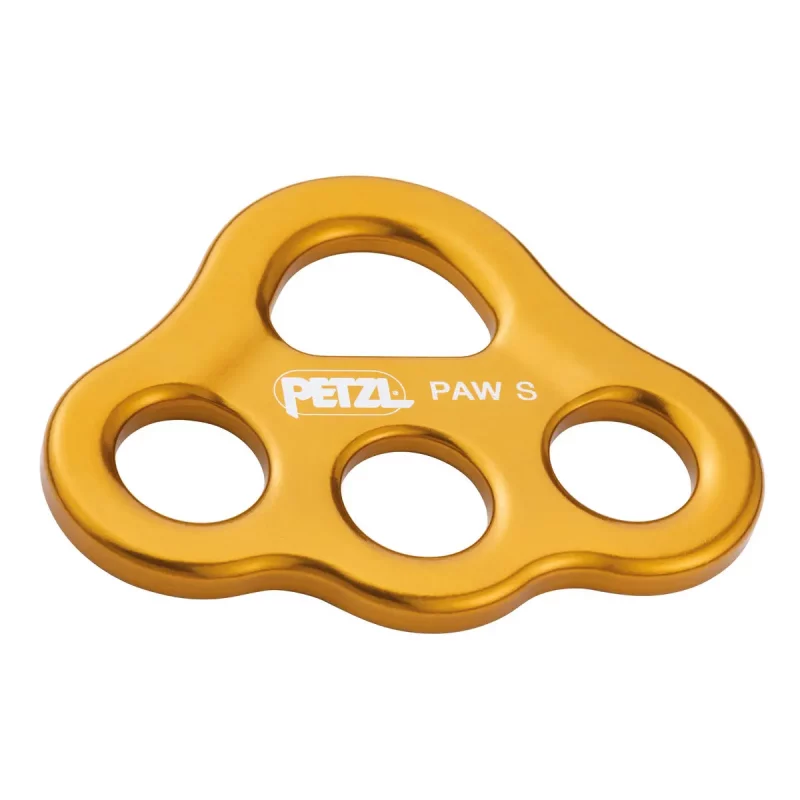

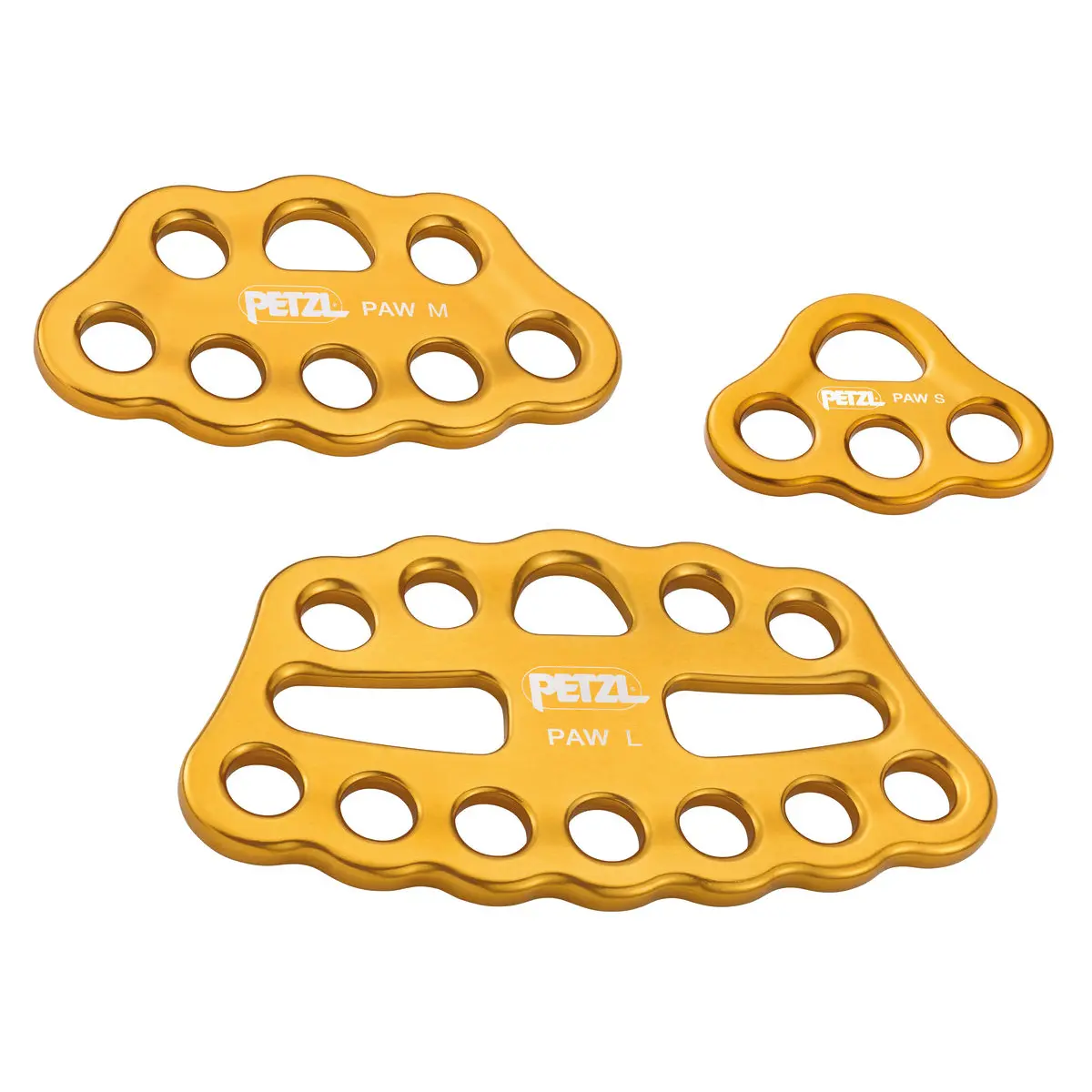

Available in three sizes, the Petzl® PAW rigging plate allows the organizing of the workstation and setup of multi-anchor systems. The hole design allows ropes or slings to be threaded for direct connection. Made of forged aluminum, it offers an excellent strength-to-weight ratio.
FEATURES

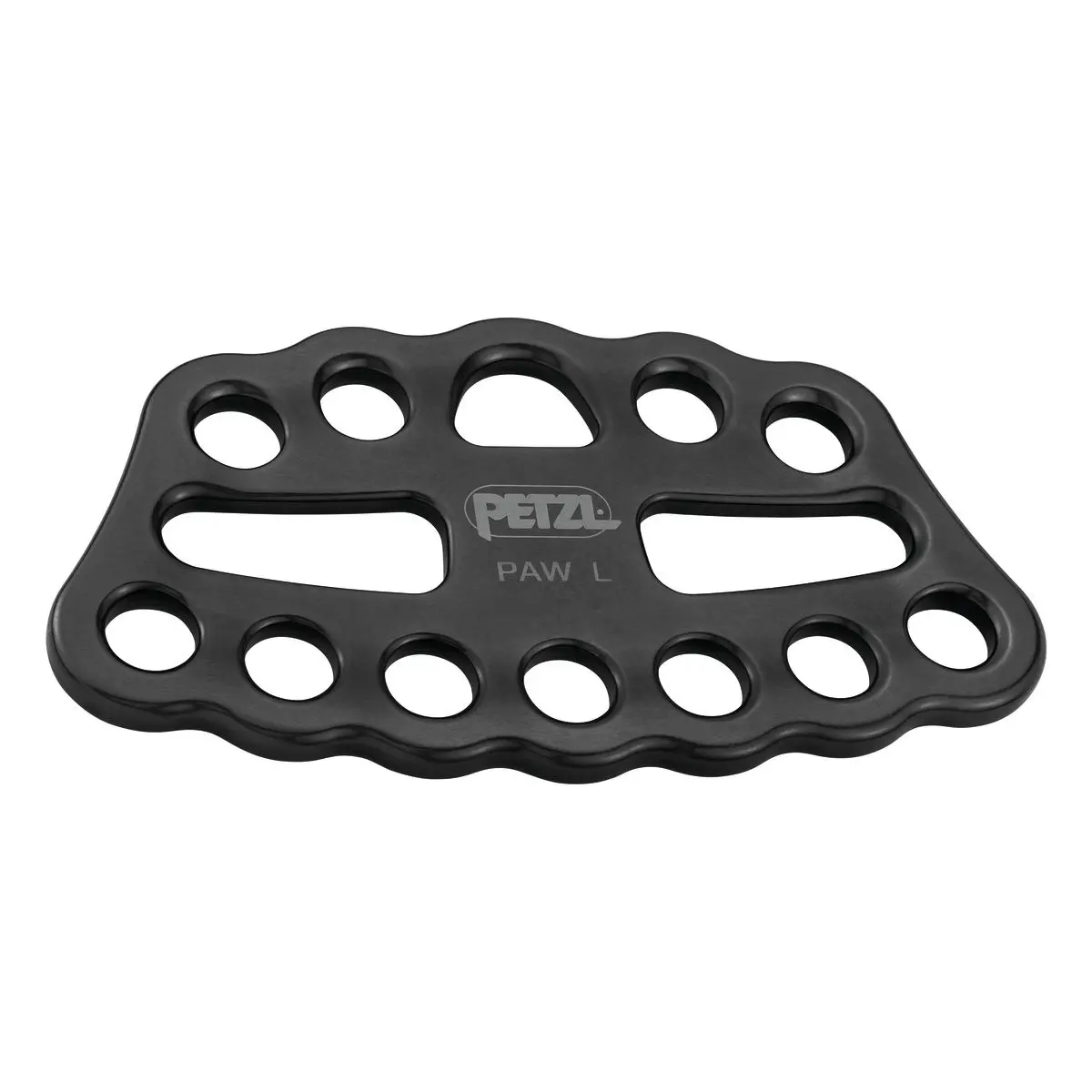

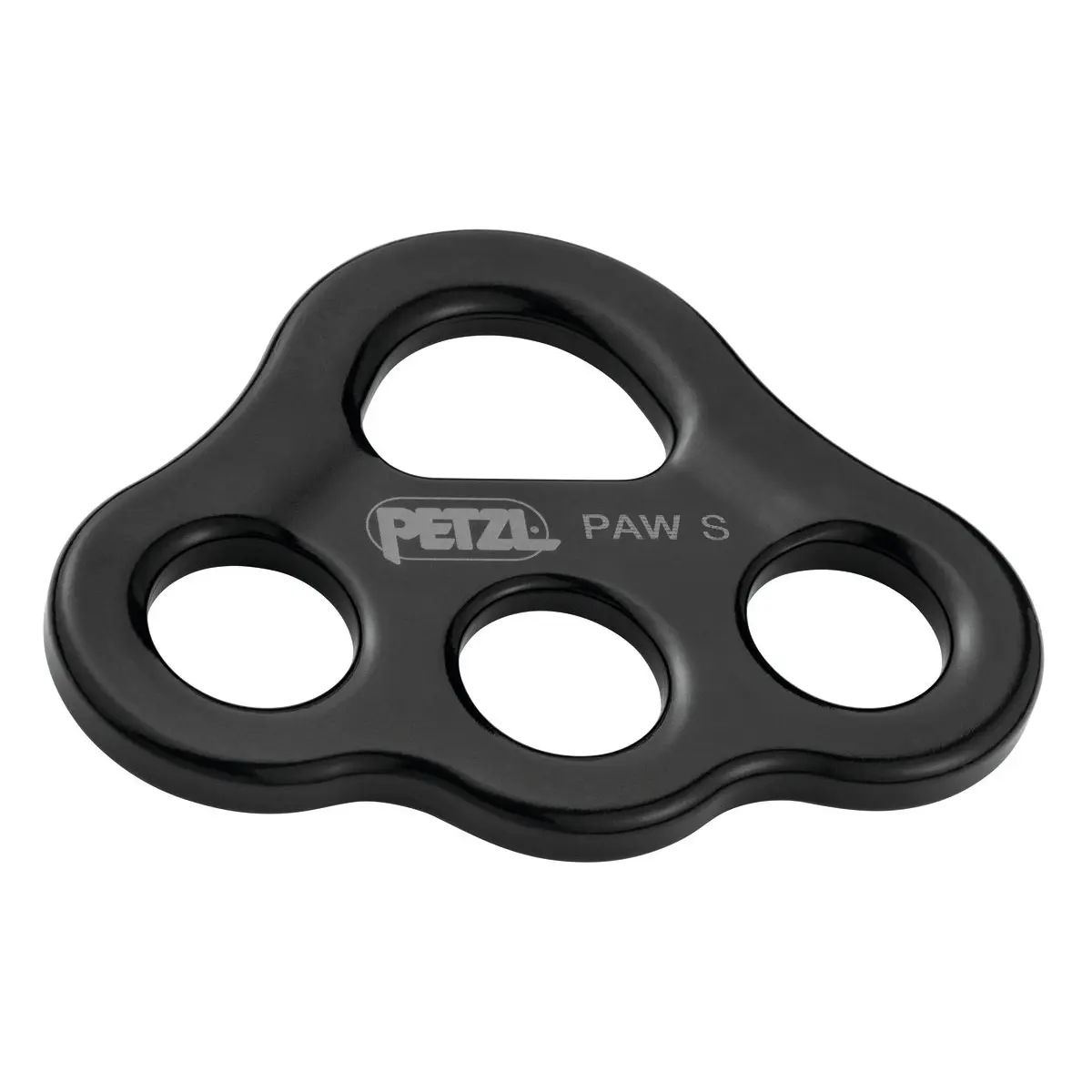

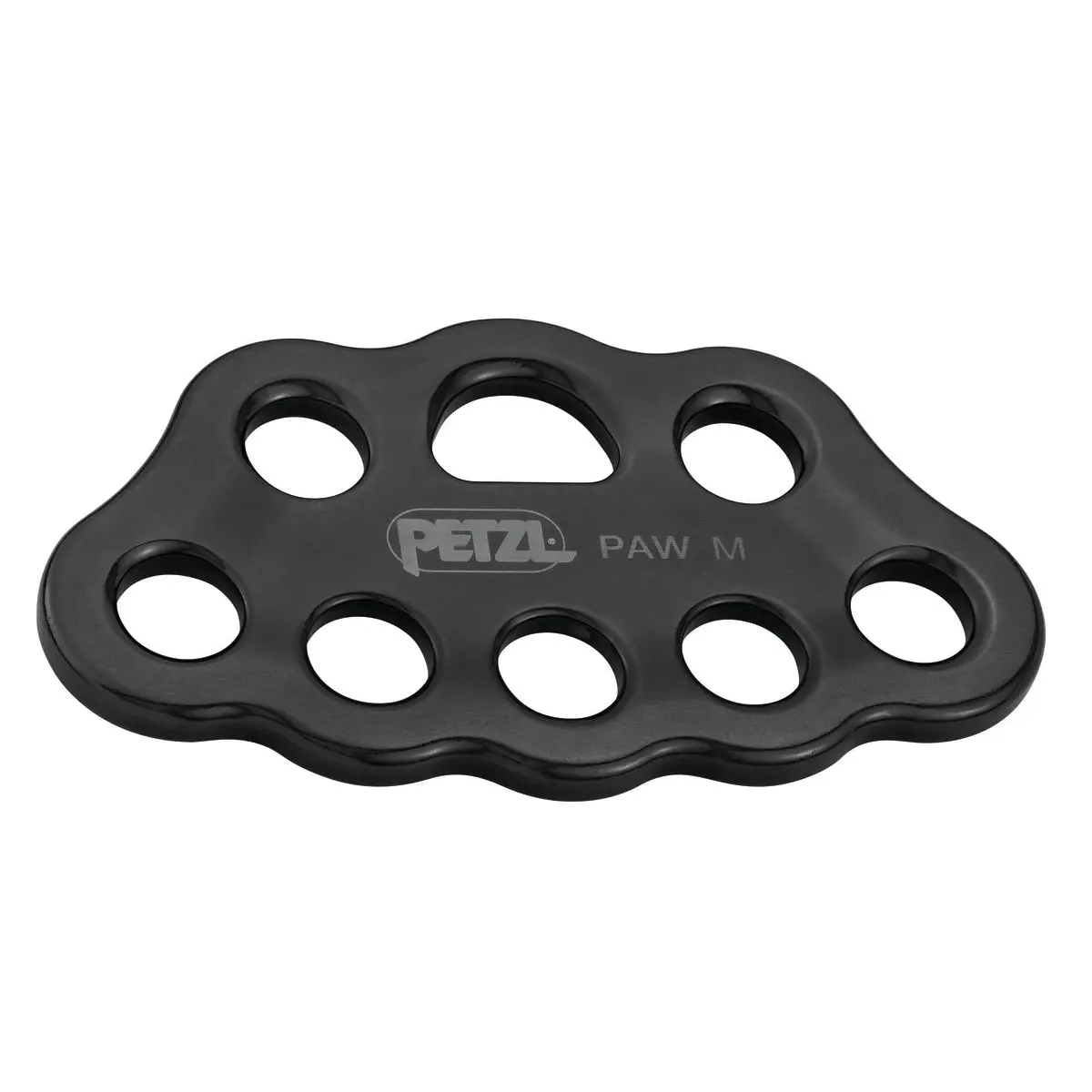

- Available in three sizes and a black version

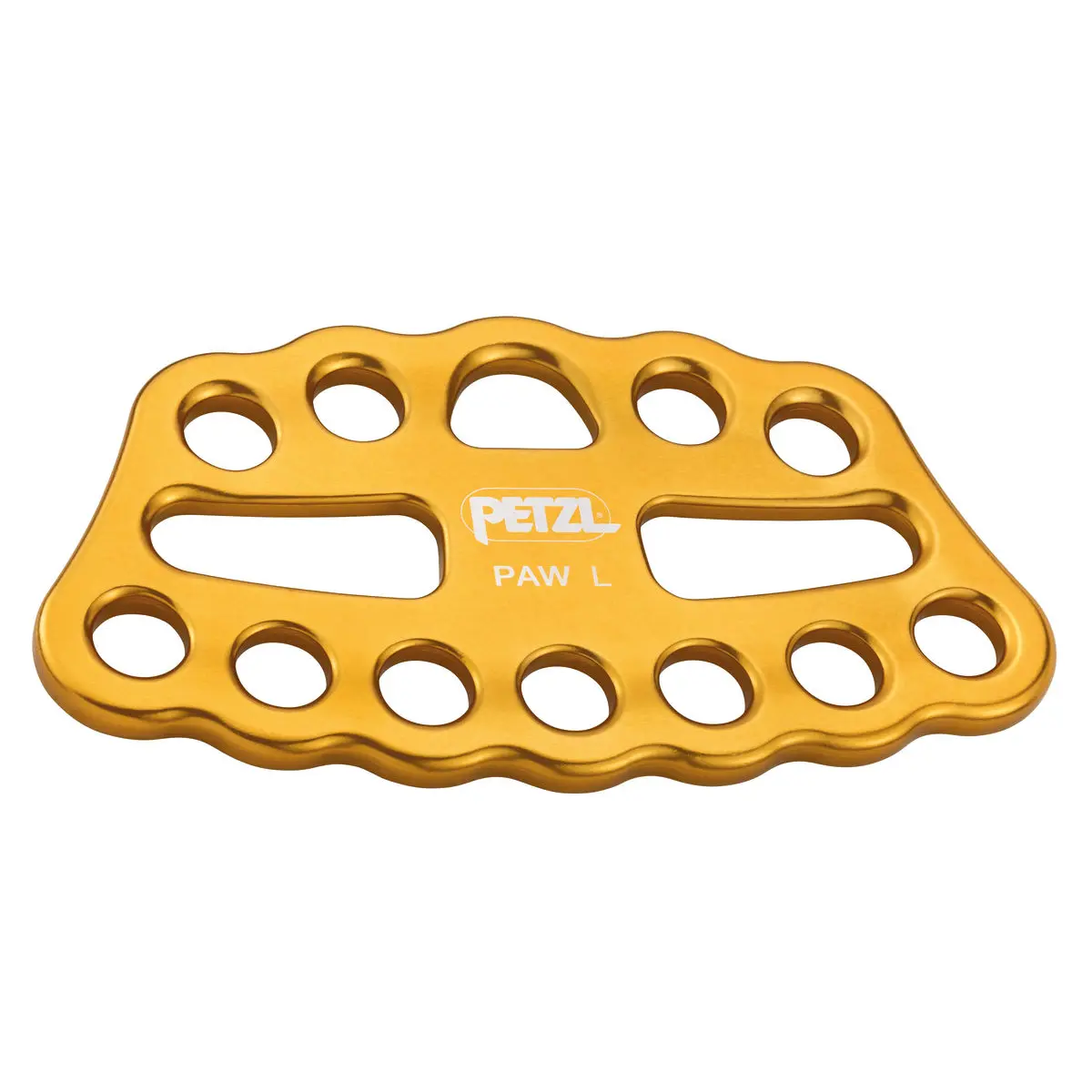

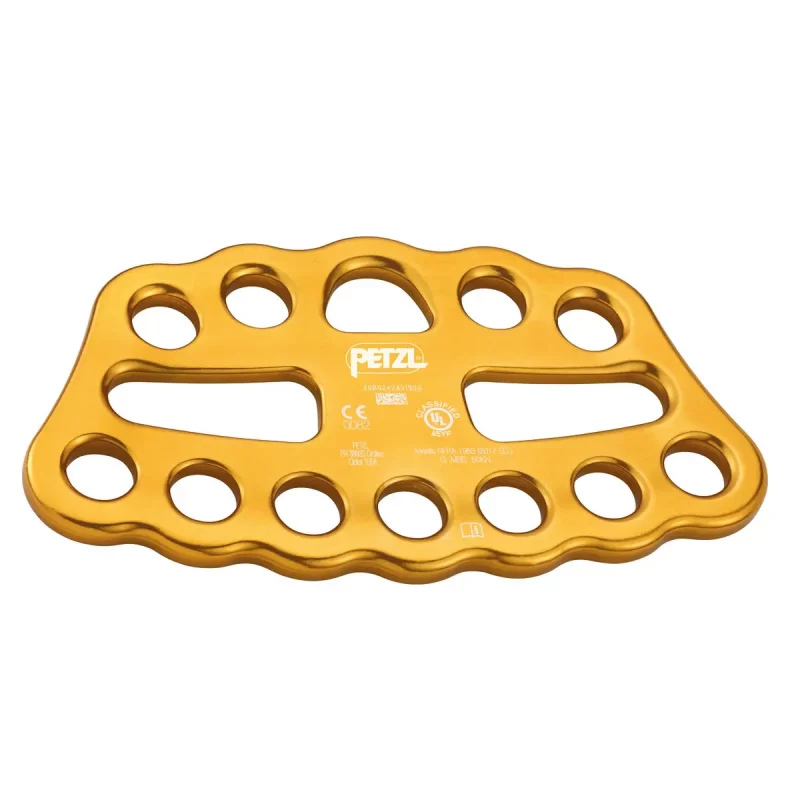

- Two wide auxiliary attachment holes (size L only), compatible with the CONNEXION FIXE and CONNEXION VARIO anchor straps.
- For easy organization of the workstation and setup of multi-anchor systems
- 19 mm holes allow the locking sleeves of most carabiners to pass through, enabling the carabiner to be rotated

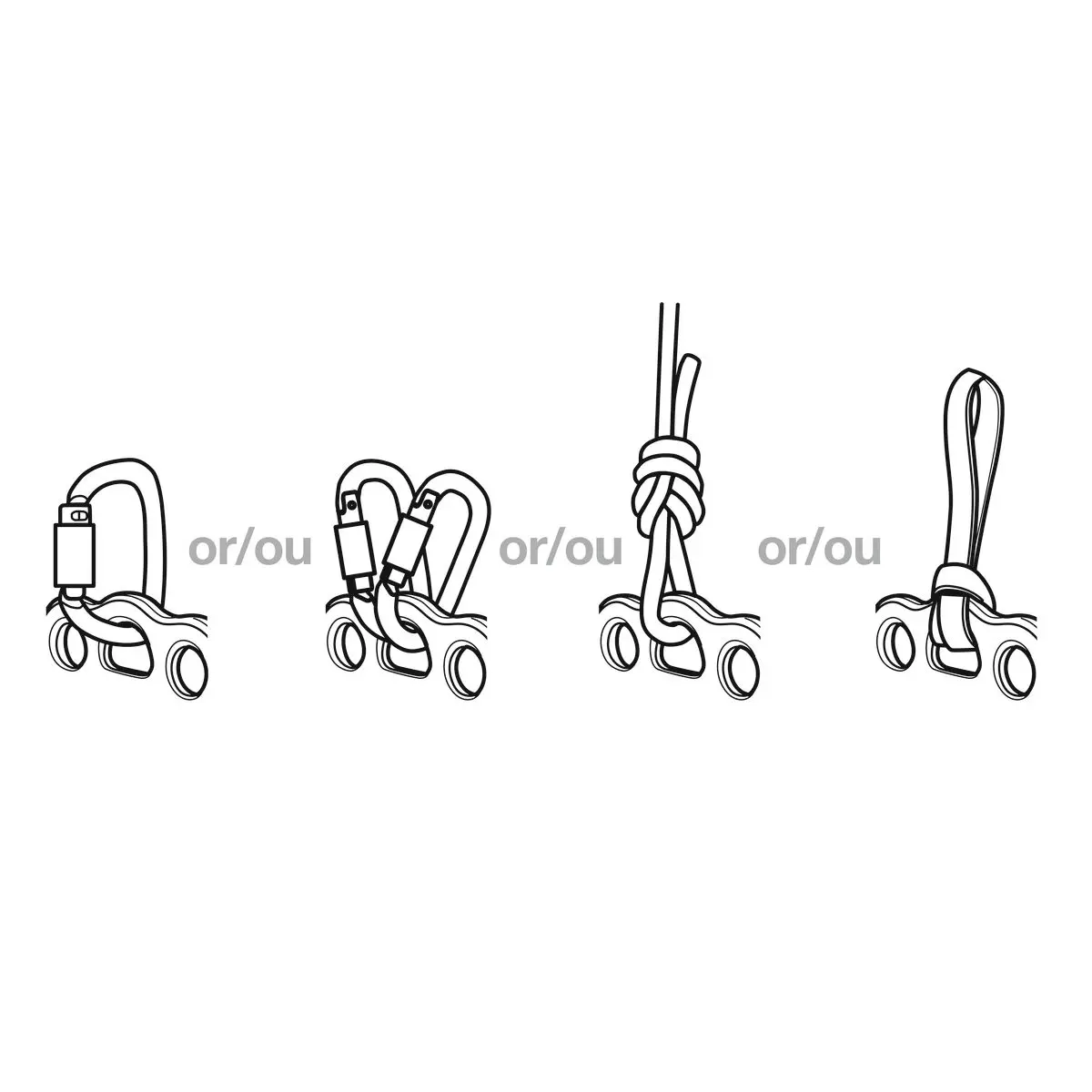

- Hole design allows ropes or slings to be threaded for direct connection.
- Main attachment hole accepts up to three carabiners
- The odd number of attachment holes enables the system to be centered and balanced
- Up to three users can be connected at the same time
- Durability
- Made of forged aluminum for an excellent strength-to-weight ratio

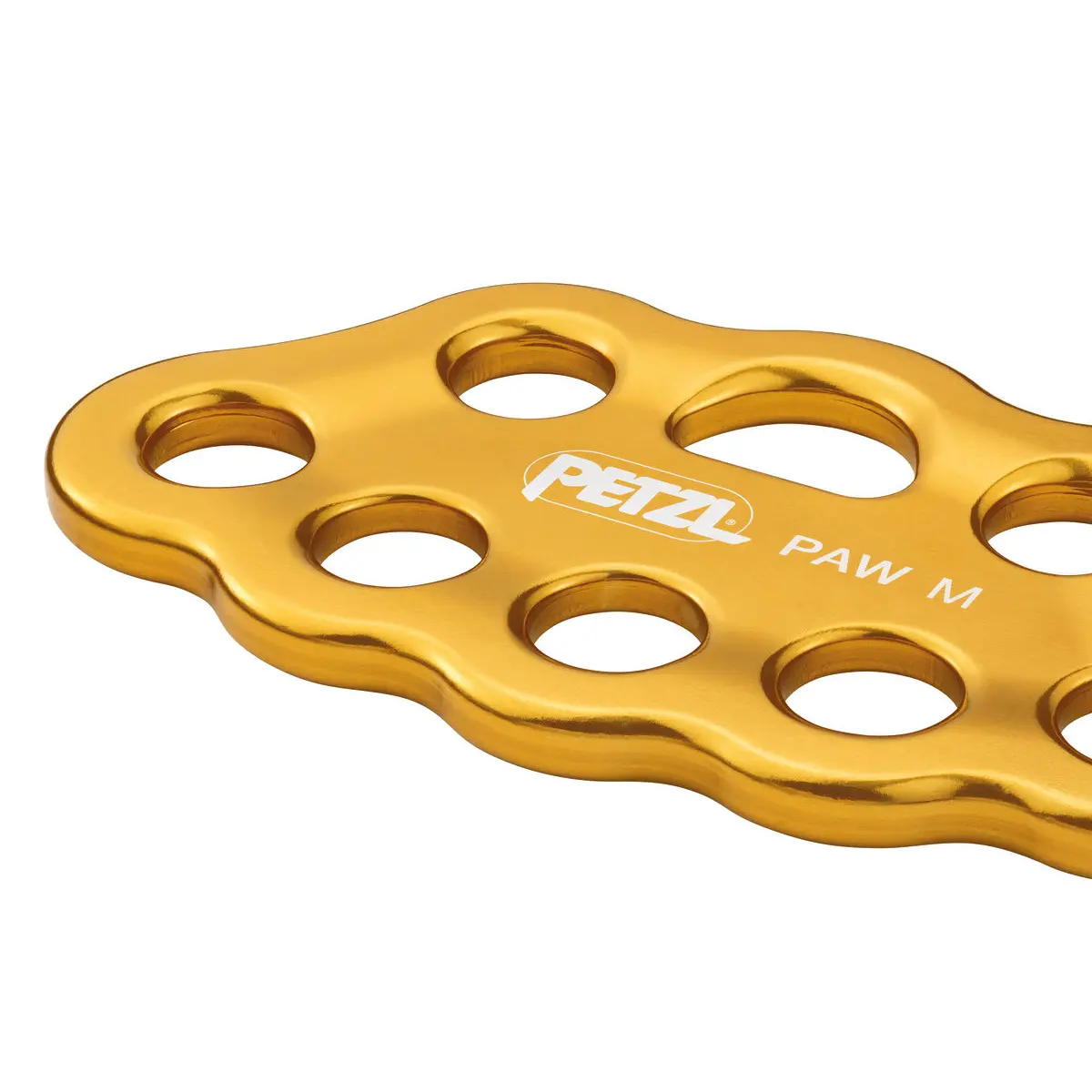

- Durable markings, thanks to the recessed area in the center of the plate
SPECIFICATIONS
| Material | Aluminum |
|---|---|
| Certifications | CE, NFPA 2500 General Use, UKCA |
TECHNICAL DATA
| Model | G063AA00 | G063AA01 | G063BA00 | G063BA01 | G063CA00 | G063CA01 |
|---|---|---|---|---|---|---|
| Size | S | S | M | M | L | L |
| Color | Yellow | Black | Yellow | Black | Yellow | Black |
| Weight | 60 g | 60 g | 180 g | 180 g | 350 g | 350 g |
| Breaking Strength | 36 kN | 36 kN | 45 kN | 45 kN | 50 kN | 50 kN |
| Guarantee | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years |
| Inner Pack Count | 1 | 1 | 1 | 1 | 1 | 1 |
